Case 101: What It Is, What to Check, and What First Buyers Get Wrong

Key takeaways

The case is the body of the watch. Its size and shape decide how it sits on your wrist. Everything else, the dial, the movement, the bracelet, lives inside or attaches to it. Before you walk into an AD or open Chrono24, you need to understand what you’re actually looking at when a spec sheet says “40mm.”

Most first buyers focus on that single number. It’s the wrong number to focus on. By the end of this piece, you’ll know which numbers actually matter, what to look for in person, and the four mistakes that send buyers to the forums with regret.

💡 The scroll-driven anatomy explainer on this site lets you tap each part of the case and see exactly what to look for, and what to be cautious of. The case section covers all four layers: what it is, why it matters, what to look for, and what to watch out for. Worth a look before you shop.

What it actually is

The case is a metal shell. It houses the movement, holds the crystal over the dial, and connects to your strap or bracelet through the lugs.

Here are the parts you’ll see on spec sheets and in person:

Case body. The main shell. Usually stainless steel at this price range, though titanium, gold, and ceramic appear at higher price points and in specific references.

Lugs. The four prongs extending from the case at 12 and 6 o’clock. The strap or bracelet attaches between them. Lug length is one of the biggest factors in how a watch actually wears, more on that shortly.

Caseback. The rear of the case. Either solid (screwed or snapped shut) or exhibition glass, which lets you see the movement. Solid casebacks are more common on tool watches. Exhibition backs appear on dress watches and anything with a movement worth showing off.

Crown. The small knob at 3 o’clock. You use it to set the time and, on manual-wind movements, to wind the mainspring. On dive watches, the crown screws down to seal the case against water.

Crystal. The transparent cover over the dial. Sapphire crystal is standard at this price range, extremely scratch-resistant. Mineral glass scratches more easily. Acrylic (hesalite) appears on vintage pieces and some modern reissues; it scratches easily but polishes out.

Round cases

The round case is the default shape in watchmaking. It’s the most versatile, the most strap-compatible, and the shape that follows standard lug-width sizing: 18, 19, 20, 21, or 22mm between the lugs. If you want maximum flexibility for straps and bracelets down the line, a round case is the safe starting point.

Cushion cases

A cushion case is a rounded square, a heritage shape common in the 1970s, revived deliberately by brands like IWC and Panerai. It reads as a considered aesthetic choice rather than a default.

Two things to know before you buy one. First, a cushion case wears larger than a round case of the same stated diameter. The flat sides extend further across your wrist. Second, those flat sides can catch on shirt cuffs. Not a dealbreaker, but worth knowing before you commit.

The number the spec sheet doesn’t tell you

“Case size” on a spec sheet is always the diameter of the round case body, in millimetres. It does not tell you how the watch will sit on your wrist.

For that, you need two other numbers: lug-to-lug and thickness. Neither gets the marketing attention that diameter does. Both matter more.

What to look at when you’re shopping

Lug-to-lug: the number that actually determines fit

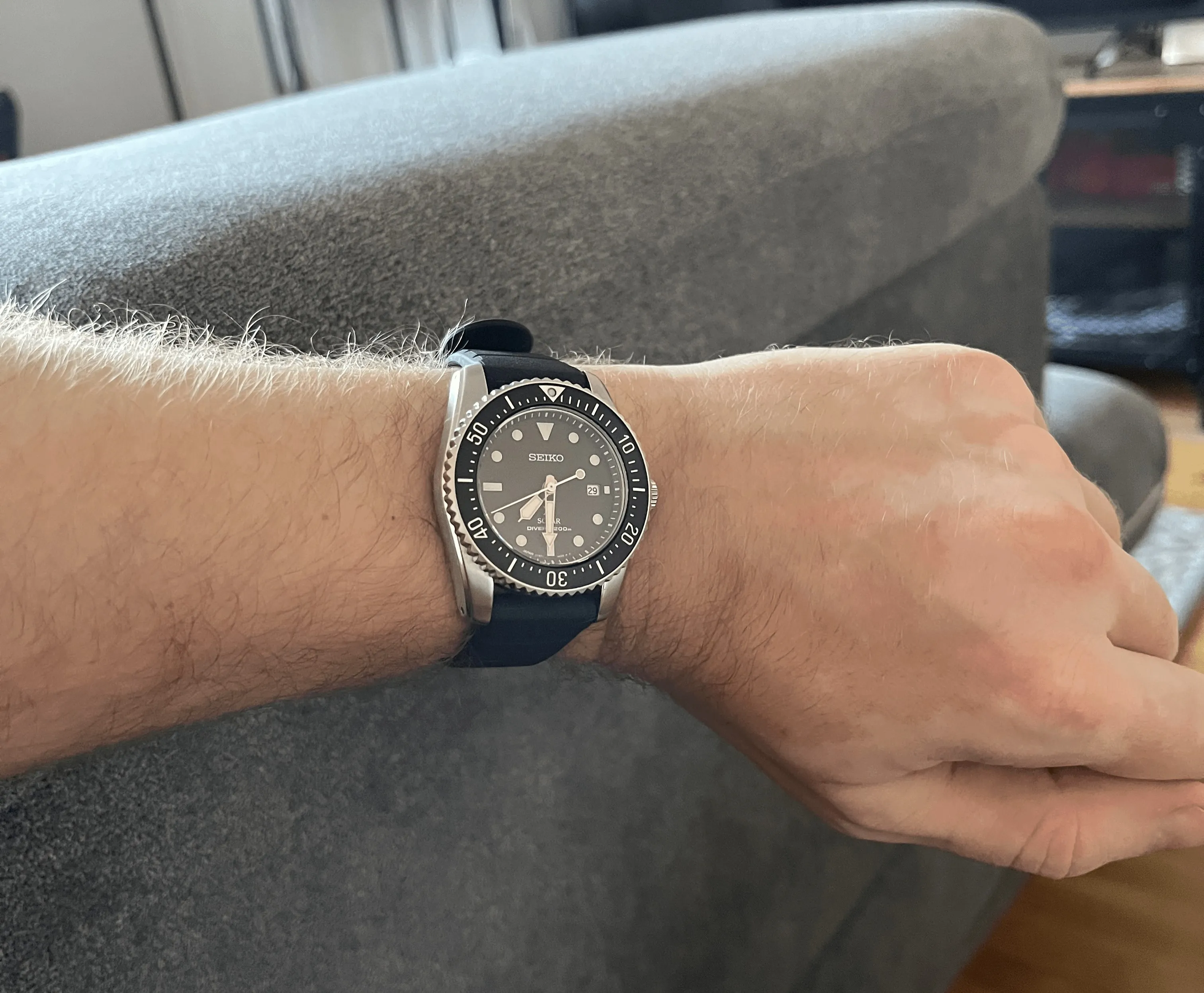

Lug-to-lug is the distance from the tip of the upper lugs to the tip of the lower lugs, measured with the watch lying flat. This is what determines whether the watch overhangs your wrist.

A 40mm watch with long lugs can wear bigger than a 42mm watch with short ones. The diameter on the spec sheet is a starting point, not a fit guarantee.

Always find the lug-to-lug measurement before you buy. It’s listed on most manufacturer spec sheets. If it isn’t, watch databases like Watchbase and WatchUSeek’s reference threads usually have it. For a wrist under 17cm, anything above 48mm lug-to-lug will likely overhang. For a wrist over 18cm, you have more room. These aren’t hard rules, they’re filters.

Thickness: the number marketing ignores

Case thickness is listed in millimetres on most spec sheets and gets almost no attention in marketing copy. It should get a lot of yours.

A thick case will dominate a smaller wrist and sit awkwardly under a dress shirt cuff. A watch that looks proportionate in photos can feel like a hockey puck once you account for thickness alongside diameter.

Check thickness alongside diameter, not instead of it. A 40mm case at 10mm thick wears very differently from a 40mm case at 14mm thick.

Lug width: your strap options for the life of the watch

Lug width is the gap between the lugs where the strap attaches. This number determines your aftermarket options for the entire time you own the watch.

Standard lug widths, 18, 19, 20, 21, 22mm, give you access to a wide aftermarket. Dozens of strap makers produce options at these sizes. You can swap to leather, rubber, NATO, or a different bracelet for $30–$150 without any difficulty.

Proprietary or unusual lug widths lock you into whatever the brand sells. Some brands use integrated bracelet designs where the strap is part of the case geometry. These can look exceptional, but your options narrow significantly. Check the lug width before you buy.

Finishing quality: what to look for in person

At the $1,500–$6,000 price range, finishing quality is one of the clearest signals of where a brand has and hasn’t cut costs.

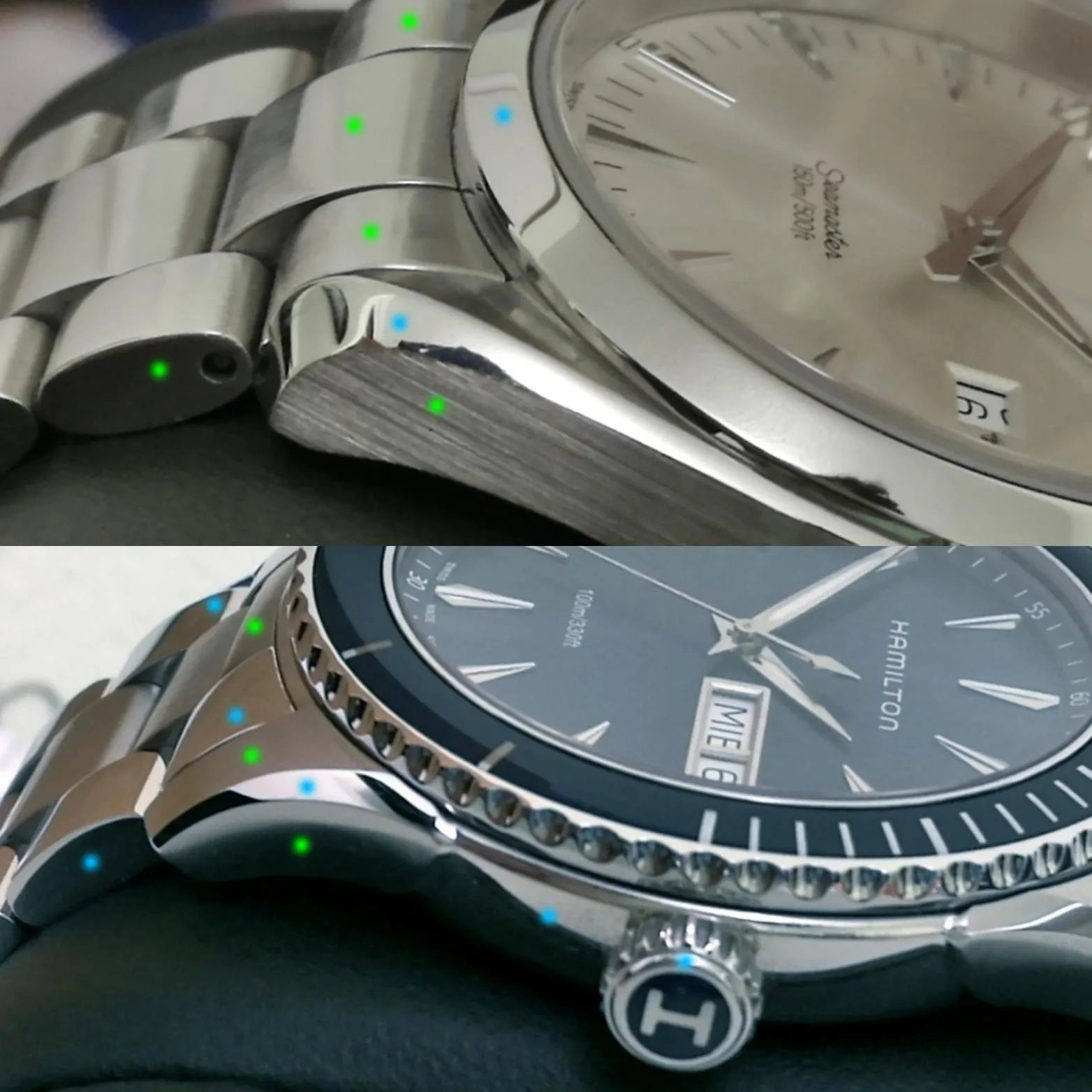

Look for crisp, clean transitions between brushed and polished surfaces. On a well-finished case, the line between a brushed lug and a polished case side is sharp and deliberate. Soft or blurry transitions are a sign of cost-cutting in the machining or polishing process.

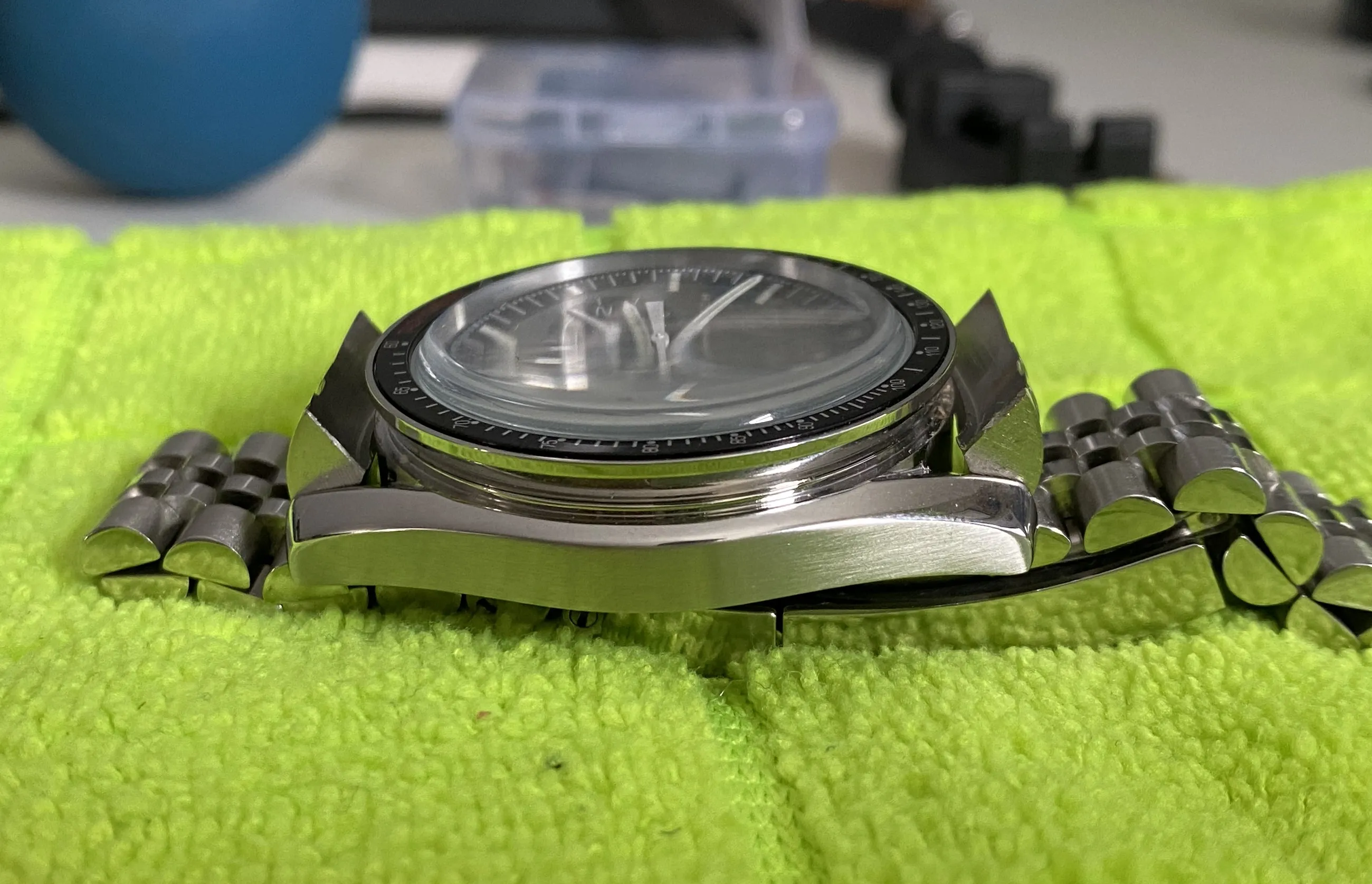

Check the end-links, the pieces of metal where the bracelet meets the case. On a well-made bracelet, these are solid metal, machined to fit flush with the case. On a cheaper bracelet, they’re folded sheet metal. You can feel the difference when you hold the watch.

Cushion cases: what to check specifically

If you’re considering a cushion case, look at two things in person.

First, check that the crystal follows the case shape. A well-executed cushion case has a crystal that mirrors the rounded-square geometry. A cost-cut version uses a generic round crystal set into a square hole, it looks wrong once you know what to look for.

Second, check that the lugs grow naturally from the case sides. On a well-designed cushion case, the lugs are an extension of the case geometry. On a poorly designed one, they look bolted on as an afterthought.

The flat-to-curved transitions on a cushion case are where machining quality shows most clearly. Run your fingernail along the edge. Sharp, clean transitions are a good sign.

Try it on

Spec-sheet numbers are a filter, not a verdict. Lug-to-lug and thickness only become real once you’re wearing the watch.

If you can try the watch on before buying, do it. If you’re buying pre-owned online, look for seller photos that show the watch on a wrist, not just on a table. If the seller doesn’t have wrist shots, ask for them.

What the community actually says

The consensus on lug-to-lug versus diameter is unusually strong. Forum regulars on r/Watches and WatchUSeek say the same thing: the diameter on the spec sheet is a starting point. A 40mm watch with long lugs can wear larger than a 42mm watch with short ones. This isn’t a fringe opinion, it’s the one piece of advice experienced buyers repeat consistently to first-timers.

Thickness gets less attention in marketing but comes up constantly in buyer regret threads. The pattern is predictable: a buyer focuses on diameter, the watch arrives, and the case height makes it feel oversized in a way the photos didn’t suggest. A 13mm-thick case on a 40mm watch is a specific kind of uncomfortable that you can’t fully anticipate from a spec sheet.

On finishing, the community consensus splits by use case. Brushed surfaces are more practical on a tool or sport watch. Polished cases show scratches immediately, this surprises buyers who chose a polished finish for aesthetics and then wore the watch daily. The consistent advice from experienced owners: if you’re going to wear it actively, choose brushed or satin. If it’s a dress watch you’ll wear occasionally, polished is fine.

Lug-width lock-in is a recurring pain point in first-buyer threads. The story is almost always the same: the buyer didn’t check lug width before purchasing, fell in love with the dial, and then discovered that aftermarket strap options didn’t exist for that size. The fix is simple, check the lug width before you buy, but it’s easy to overlook when you’re focused on how the dial looks.

Mistakes first buyers make

Buying on diameter alone

The spec sheet says 40mm. The watch arrives and wears like a 44mm because the lugs are long and the case is thick. This is the most common first-buyer mistake, and it’s entirely avoidable.

The fix: find lug-to-lug and thickness before committing. Use them as filters alongside diameter. If you can try the watch on, do it. If you can’t, find wrist shots from someone with a similar wrist size.

Ignoring thickness

Diameter gets all the attention in marketing copy. Thickness is what makes a watch feel oversized on a smaller wrist and uncomfortable under a dress shirt cuff.

A 44mm case can look proportionate in photos and wear comically large in real life, not because of the diameter, but because the case is 14mm tall. Thickness is listed on most spec sheets. Use it.

Choosing a polished finish on a sport or tool watch

Polished surfaces scratch visibly with daily wear. If you’re buying a diver, a field watch, or anything you plan to wear actively, a brushed or satin finish is more practical. This isn’t purely an aesthetic choice, it’s a decision about how the watch will look in six months.

Buyers who chose a polished case on a sport watch and wore it daily found themselves with a scratched-up case within weeks. The scratches aren’t dangerous, and a watchmaker can re-polish the case at service time. But if you wanted a polished look and you’re wearing the watch every day, you’ll be disappointed faster than you expect.

If you want some polish, look for cases with mixed finishing, brushed flanks and polished bevels, for example. You get the visual contrast without the full-case scratch visibility.

Not checking lug width before buying

If the lug width is proprietary or unusual, your strap and bracelet options are limited to whatever the brand sells. Buyers who skipped this check ended up stuck with the stock strap because aftermarket options didn’t exist for that size.

Standard lug widths (18–22mm) give you a wide aftermarket. You can spend $40 on a quality leather strap or $80 on a rubber one and transform how the watch wears. A proprietary lug width removes that option entirely.

The fix is simple: check the lug width before you buy. It’s on the spec sheet. If it isn’t, ask the seller or look it up in a reference database before you commit.

Next up: once you understand how case geometry affects fit and finish, the natural next step is applying that knowledge to narrow down actual references. How to build a shortlist of watches that fit your wrist, your use case, and your budget, without starting from scratch every time someone recommends a new reference.
